My experiments with PC pistol and rifle bullets

wquiles

Well-Known Member
Just sharing my current work with pistol (45 cal) and rifle (30 cal) PC experiments.

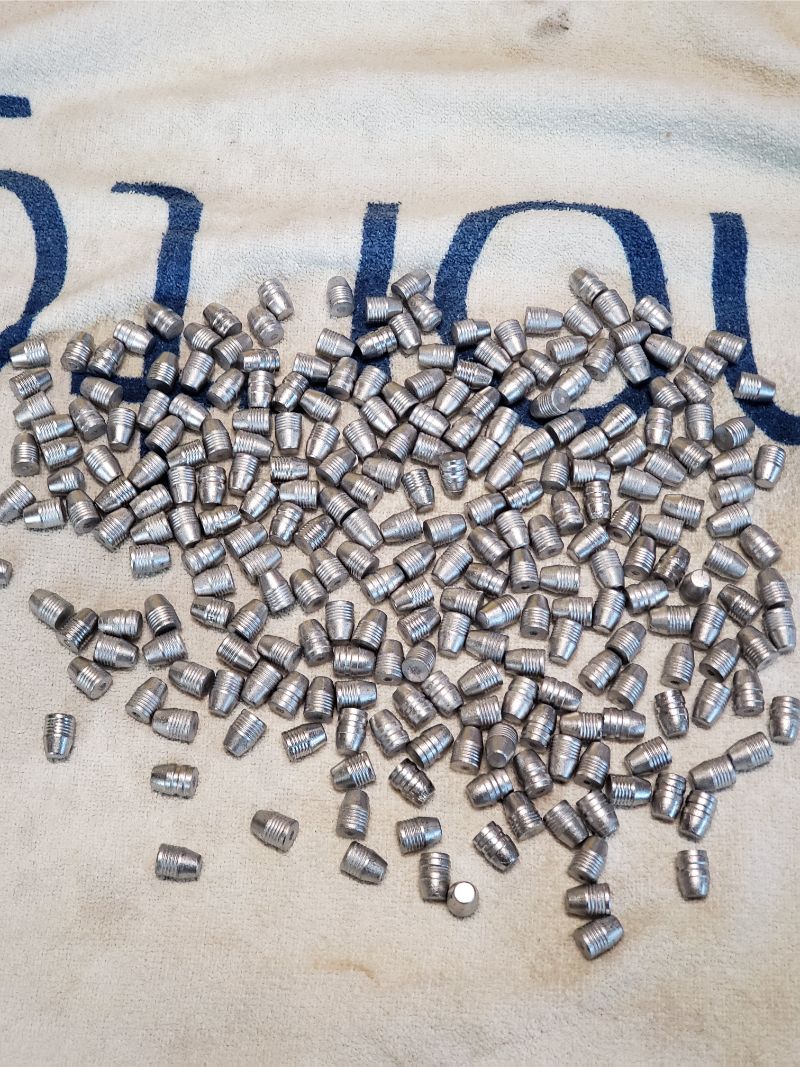

These are freshly casted 45 cal pistol bullets prior to sorting:

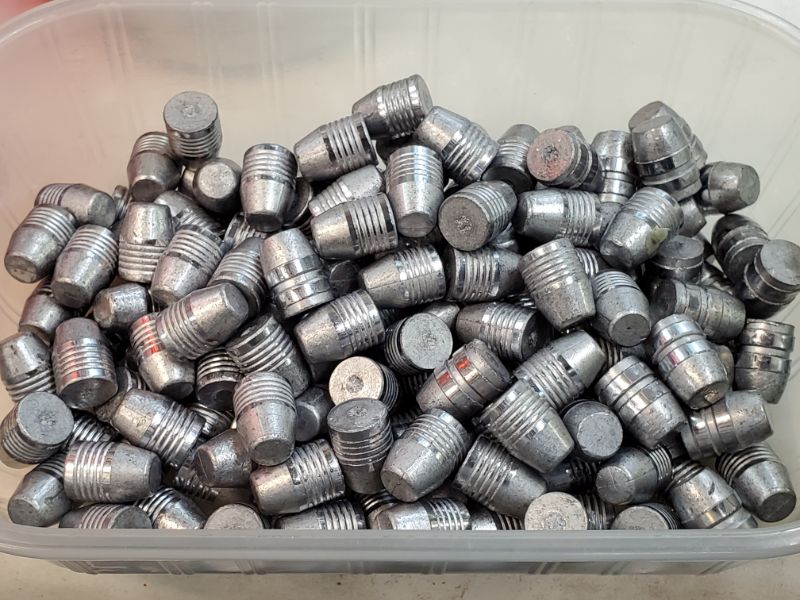

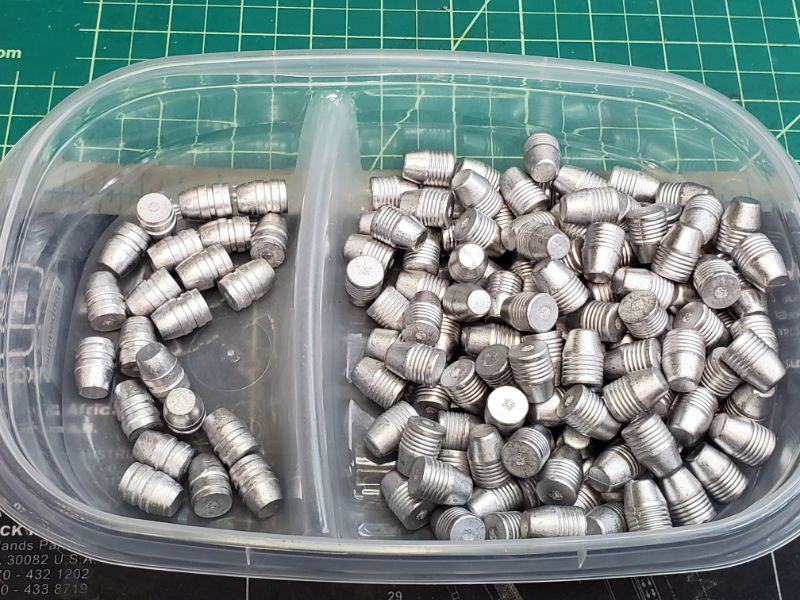

After sorting:

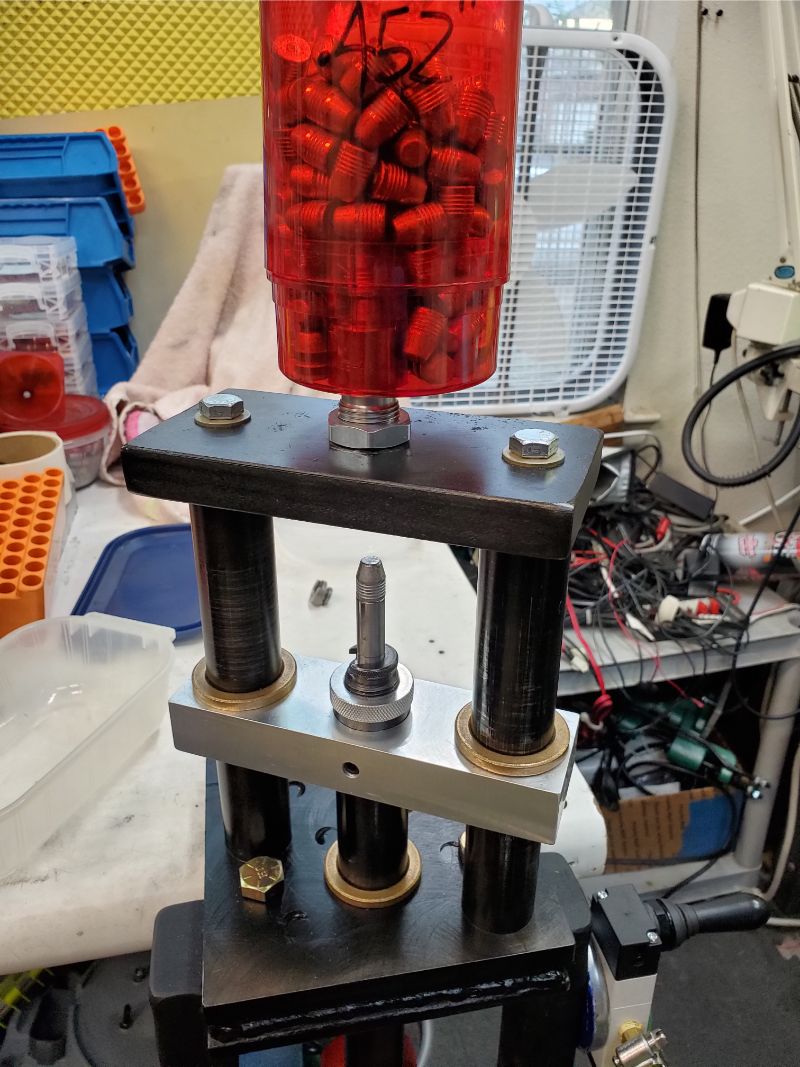

I tried PC sizing before and also after. This is sizing before:

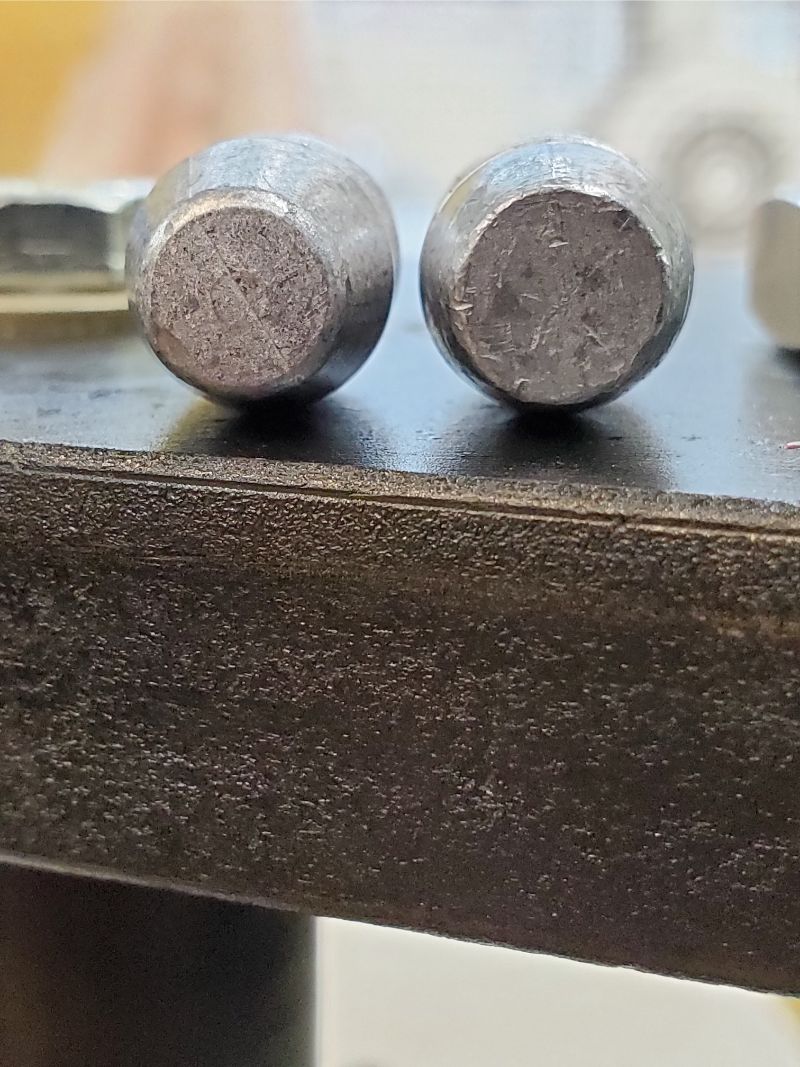

Lee 230gr on left - Accurate 250gr (WFN) on right:

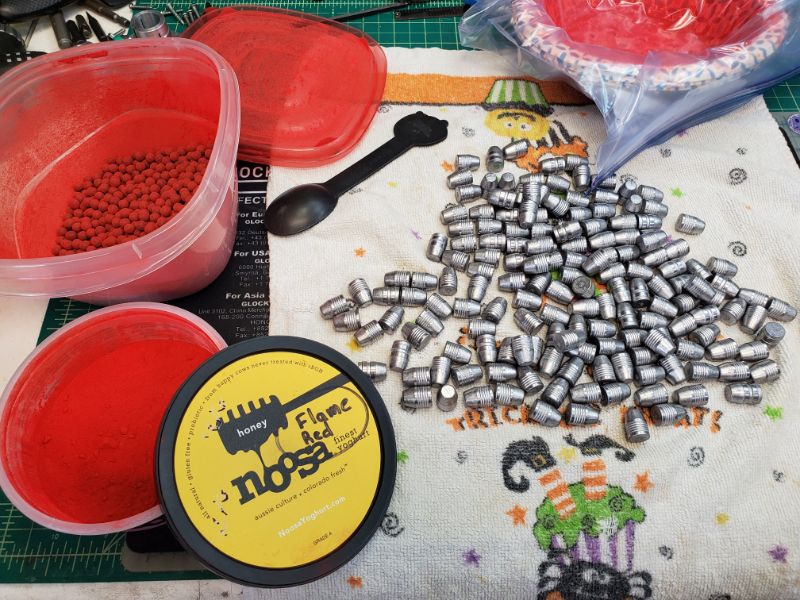

My shake and bake model with plastic BB's:

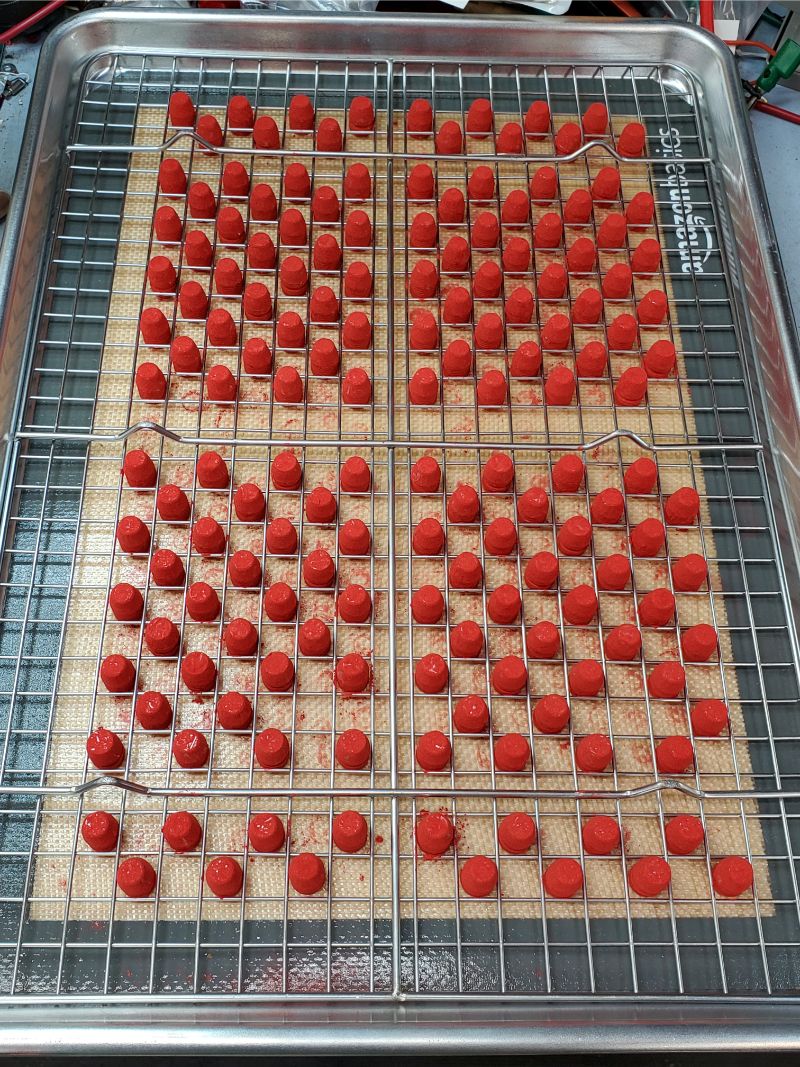

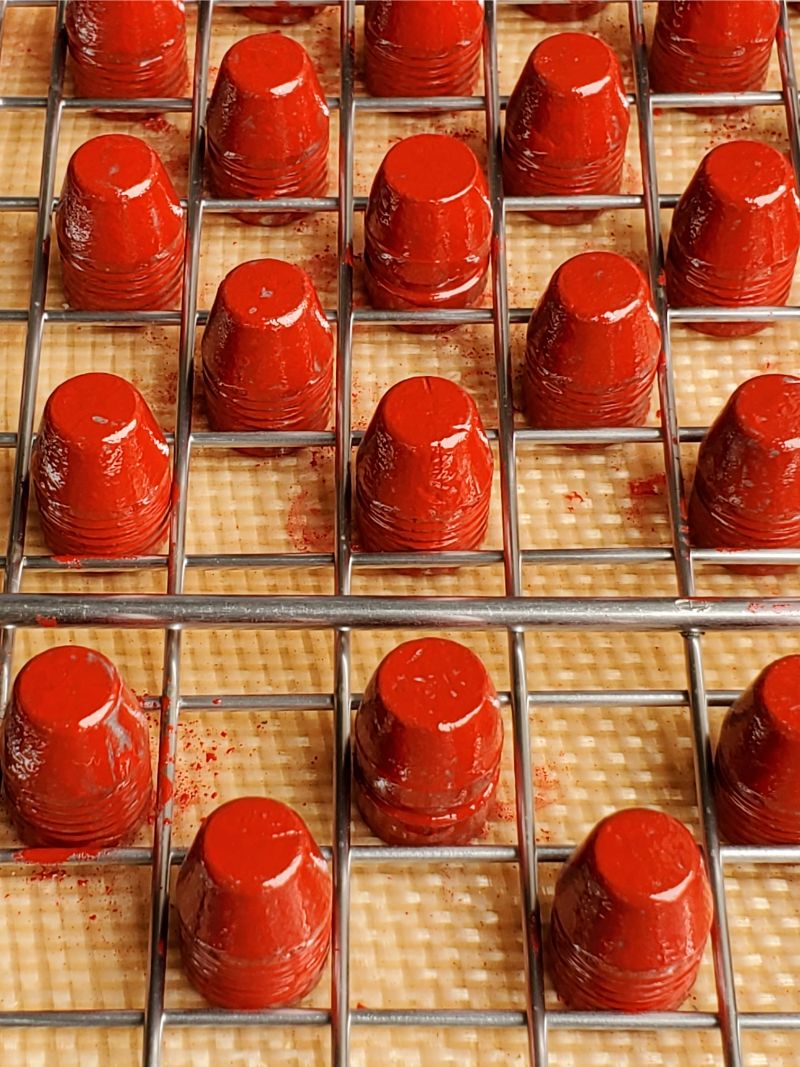

Ready for baking (15min at 400F - with the oven already at temp before I start):

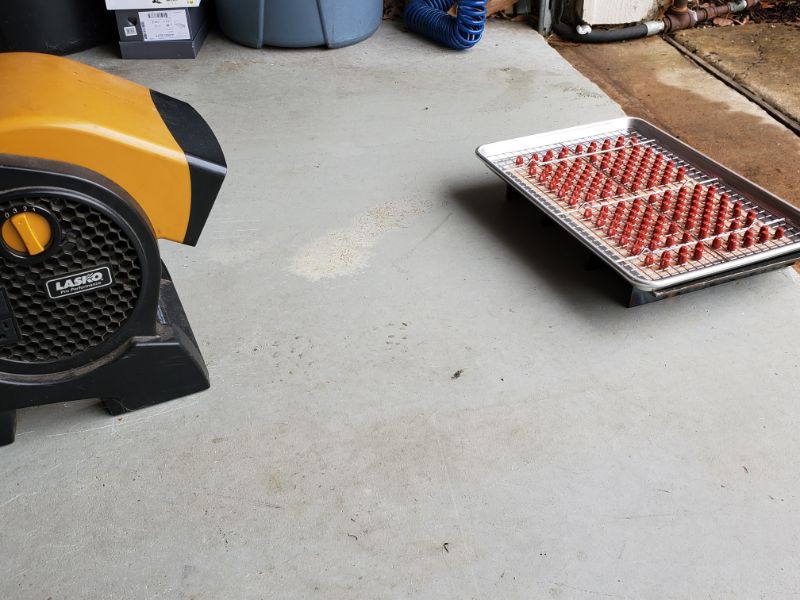

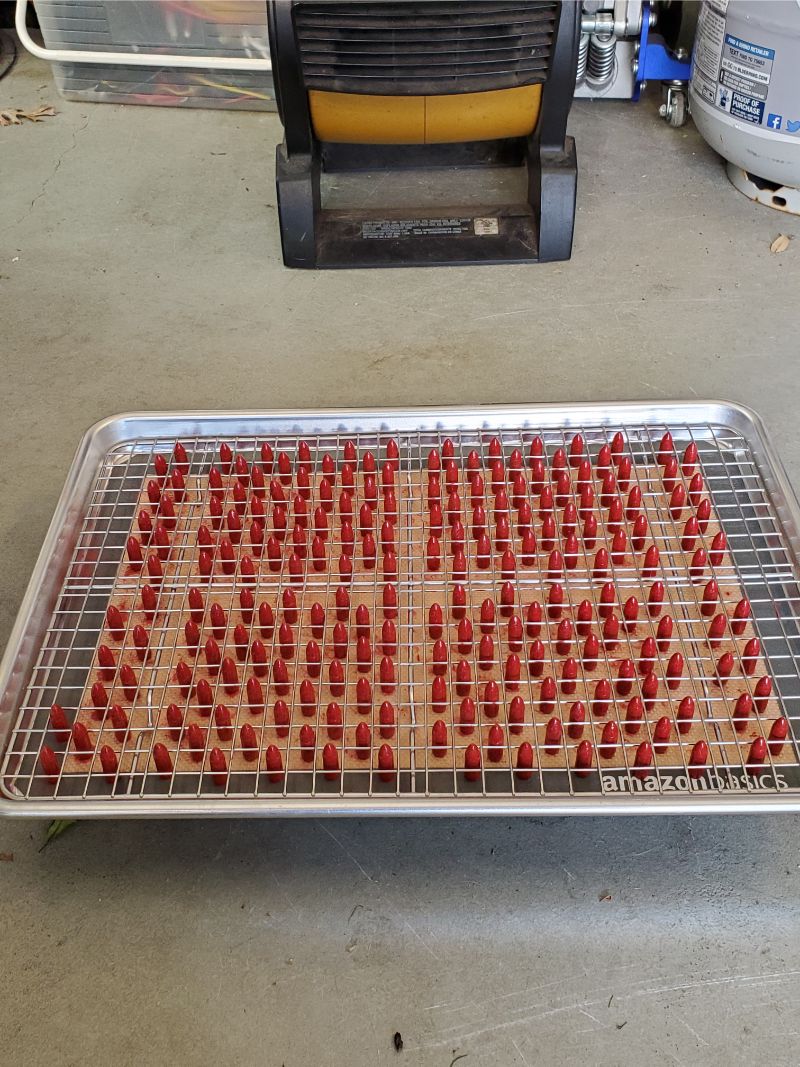

Cooling afterwards:


wquiles

Well-Known Member
Coverage for pistol bullets is decent, although might want to try other colors:

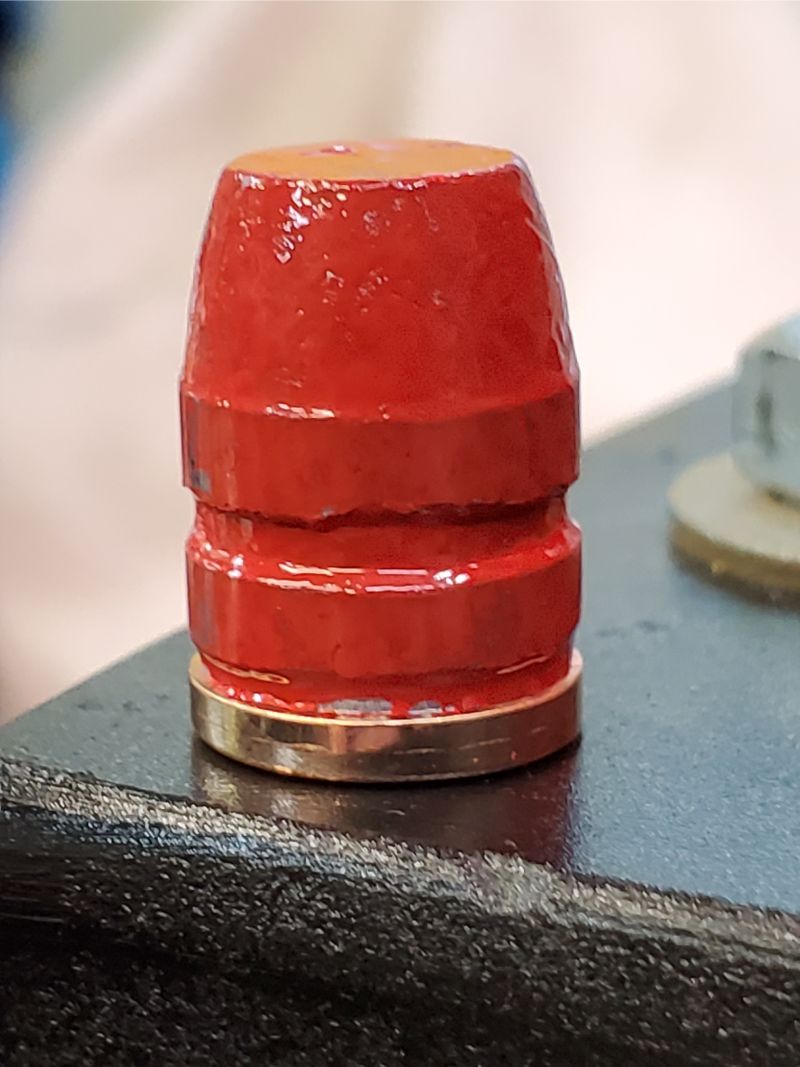

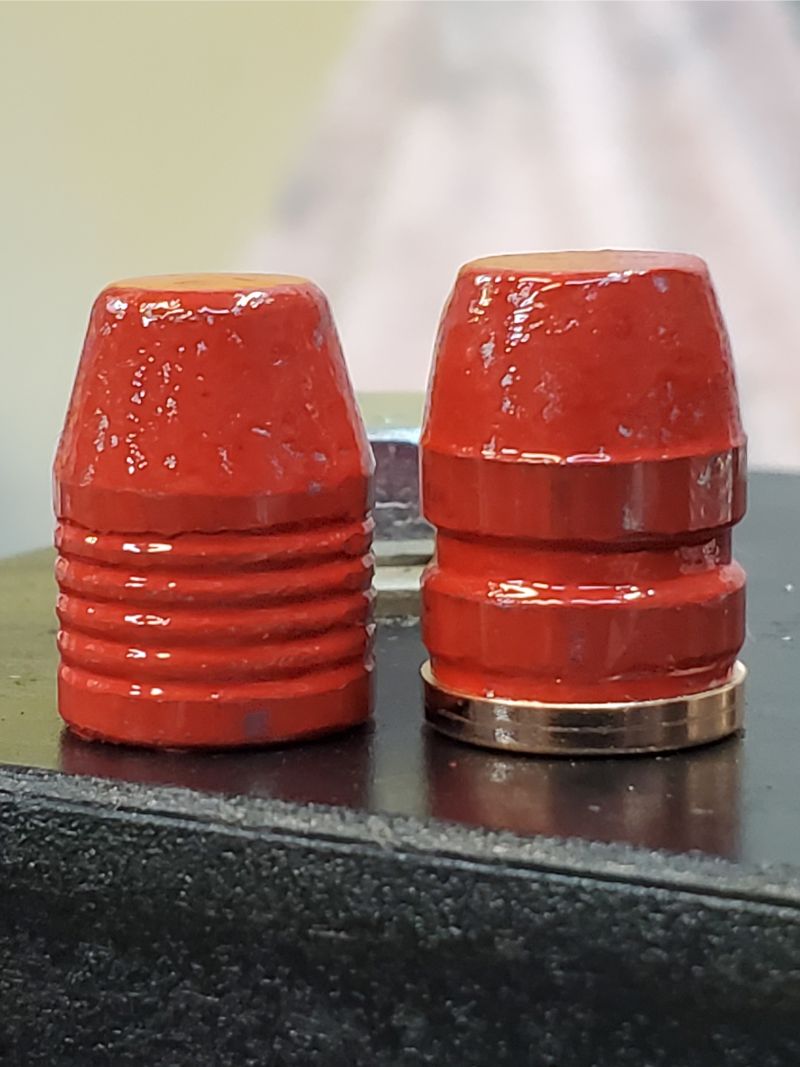

After sizing and putting GC on the WFN:

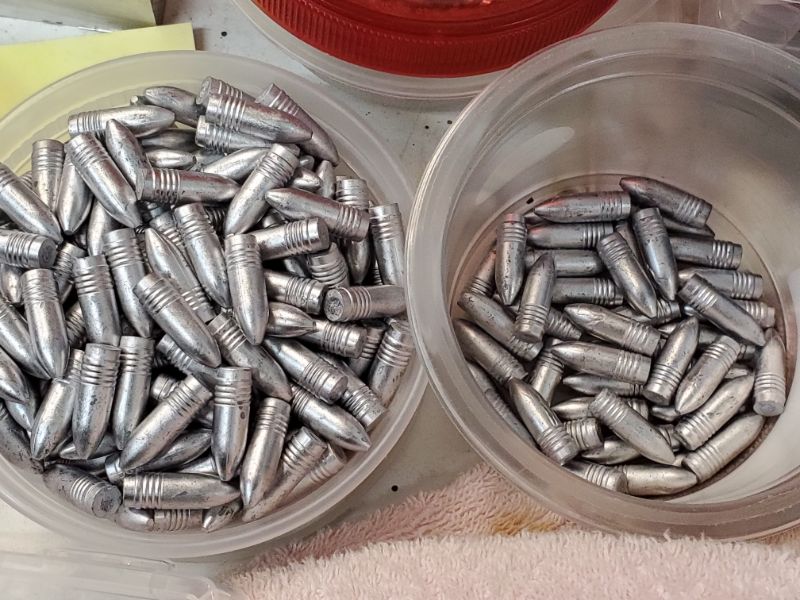

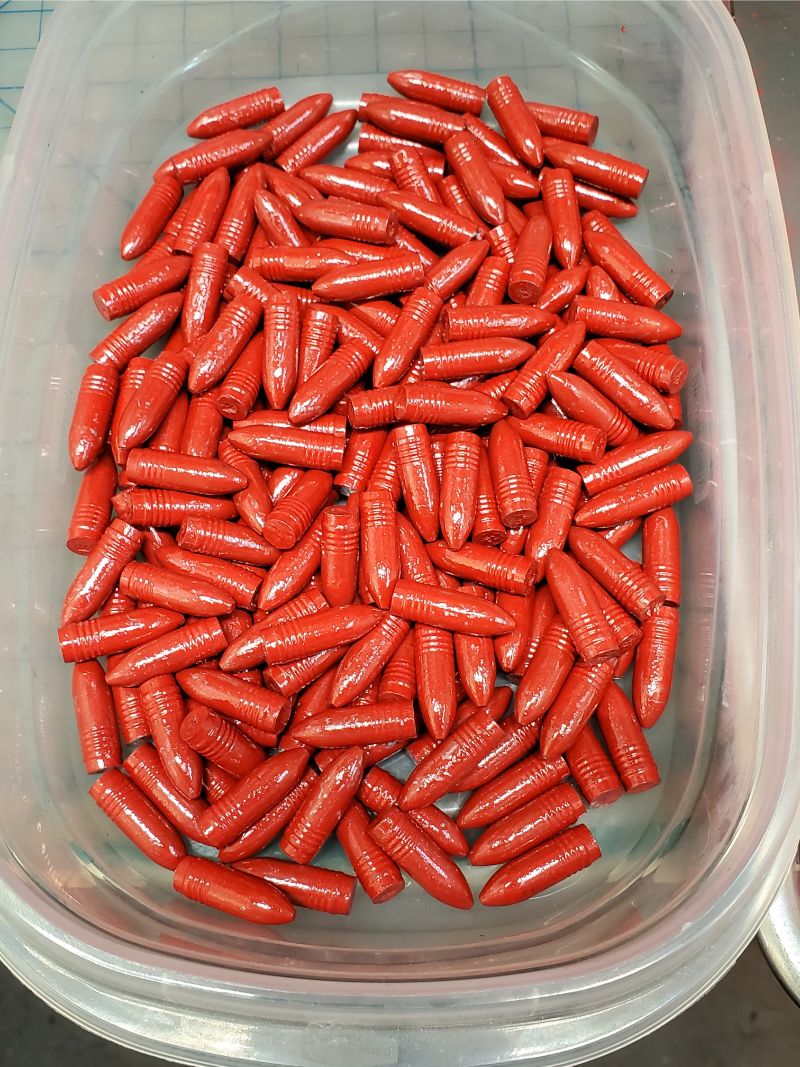

Now, with the 30cal rifle boolits, coverage is not as good :( . Here is after visual sorting (good ones on the left):


Shake and bake baby!

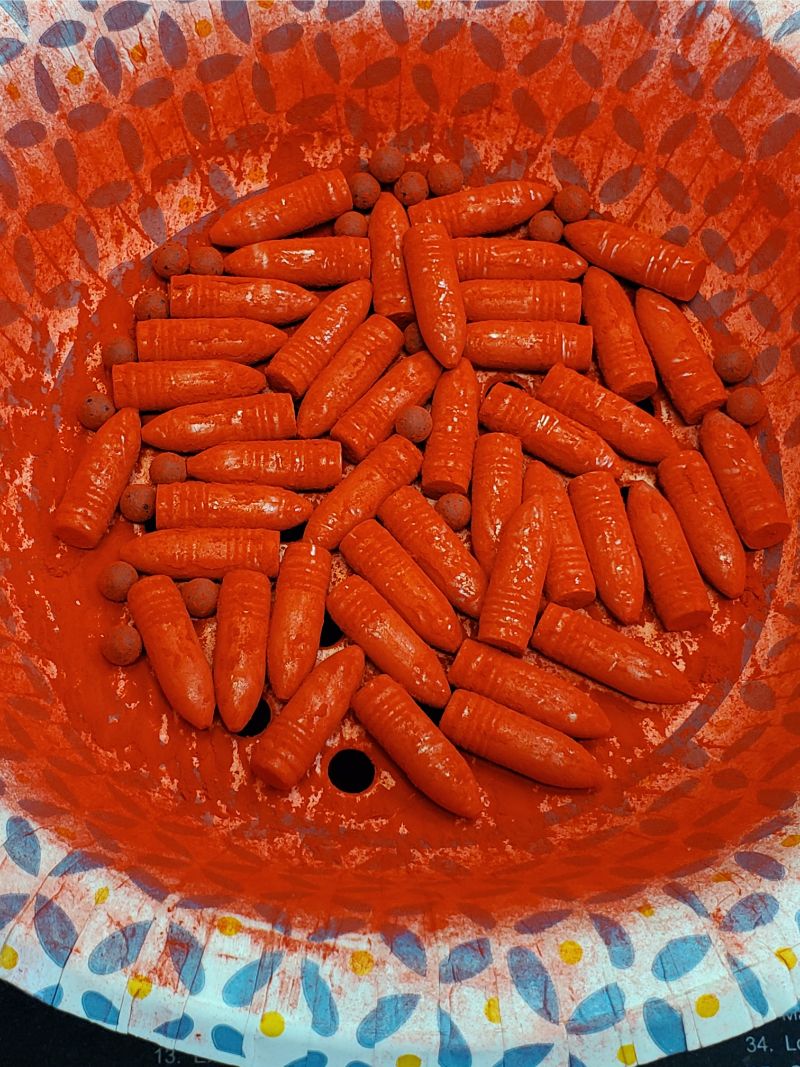

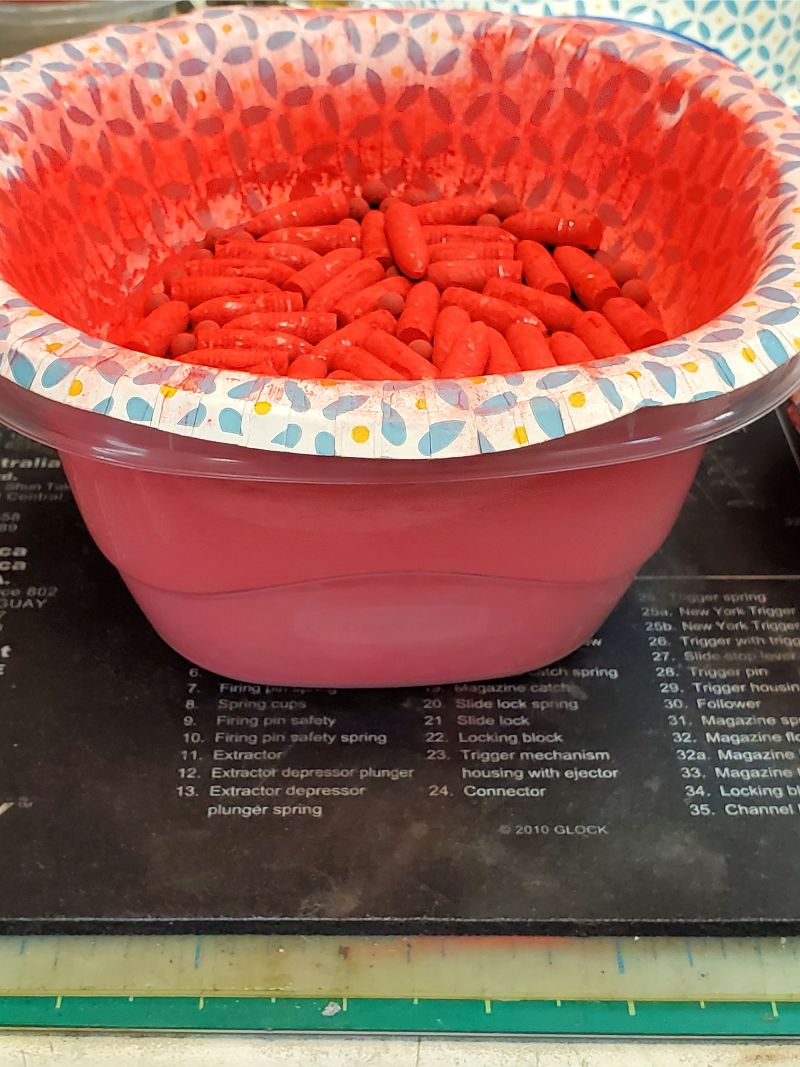

A tip I learned in the "other" forum is to use these waxed paper bowls with punched holes to get rid of the excess powder and of course the BB's as well:

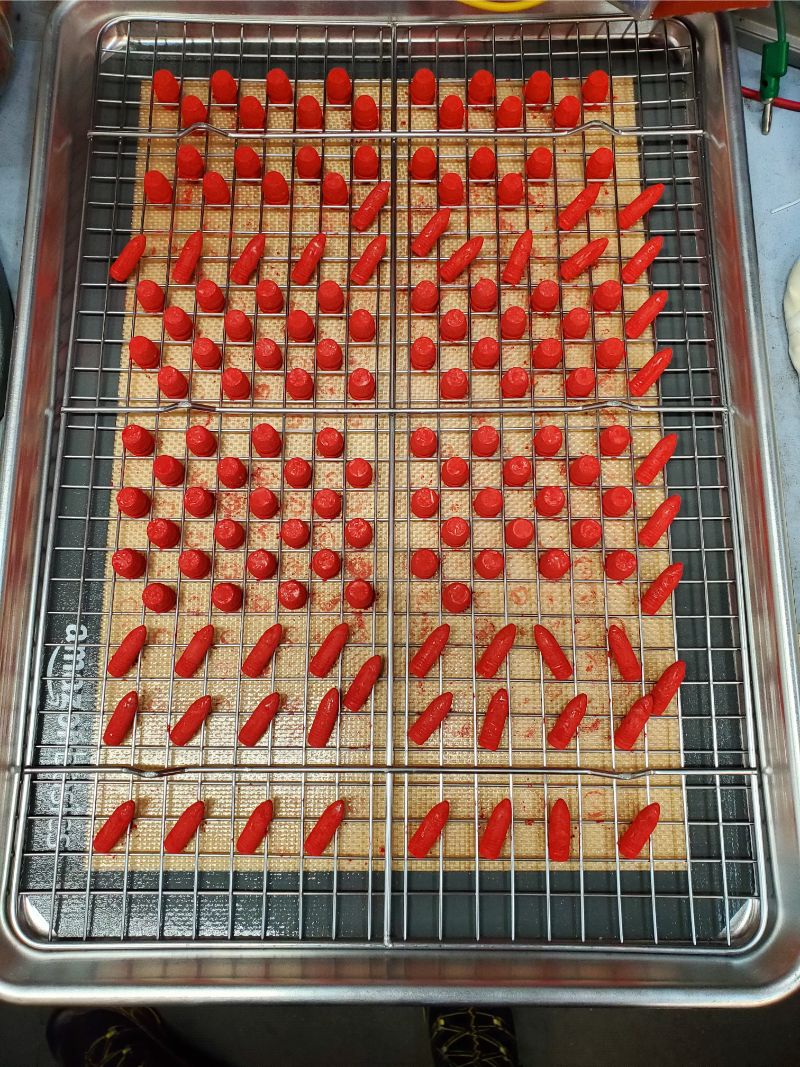

Bake:


Gary

SE Kansas
Not a thing wrong with either the pistol or rifle cast bullets IMO. Not if you're after sub MOA, might not happen. I'm partial to the gray silver of Smoke's.


Ian

Notorious member
If you just pick the rifle bullets from the pellets with needlenose pliers and set them on their bases, you will retain much more powder and a more even coating. My results have been better shooting rifle bullets with a thick coat than a thin one. Also, seat your gas checks and then pre-size your castings nose-first (dry, or lube and wash) and THEN coat them. Might work better for you that way.


wquiles

Well-Known Member
Thank you guys. After reading your comments I PM-ed smoke just now and he replied almost instantly. He recommended I try JD Green and Traffic Purple as the ones that currently tend to provide the thickest, one pass PC coating. I figure I can try both.

He also said that some of the coverage problems I might have is due to the powder absorbing humidity over time - the powder I am using is like 2-3 years old and not stored in decent containers, so "fresh" powder will help.

Ian - that is how I pick them, with needlenose pliers, so at least that part I was doing OK :). I like your idea about sizing/gc install before coating as something to try, at least on the rifle boolits.

JW - I do not tap bullets to shake off excess before putting in the baking sheet. I am always concerned of getting too "thin" of a cover.

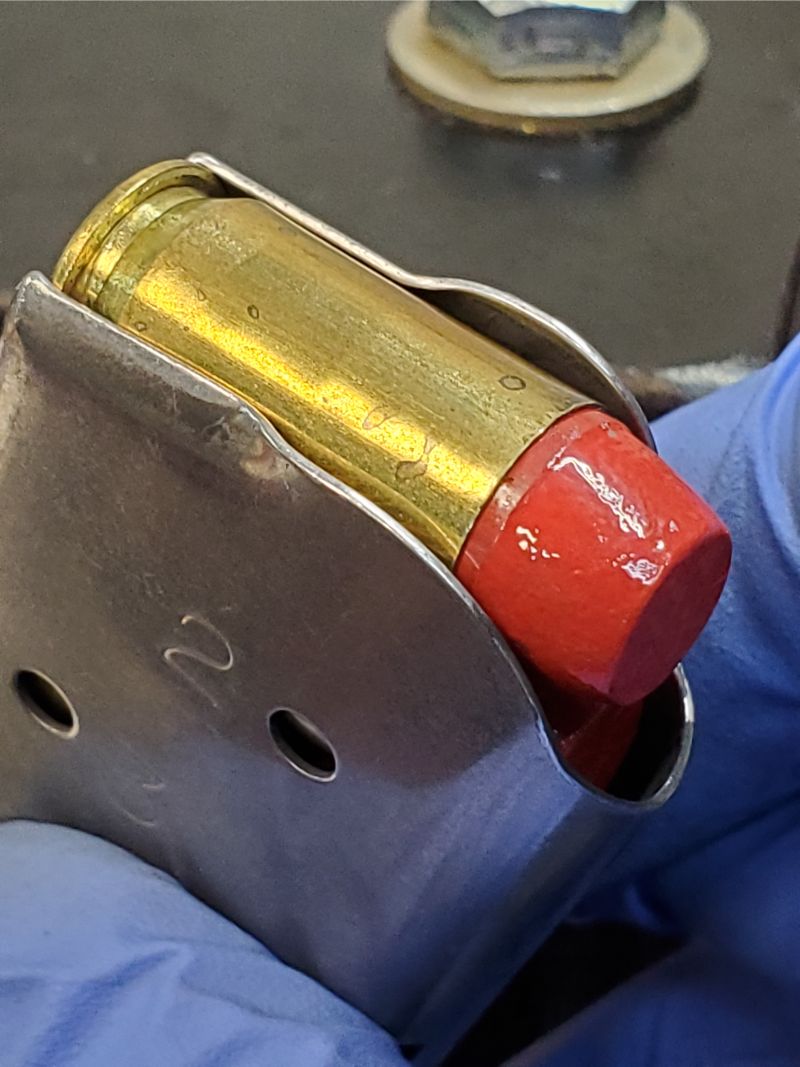

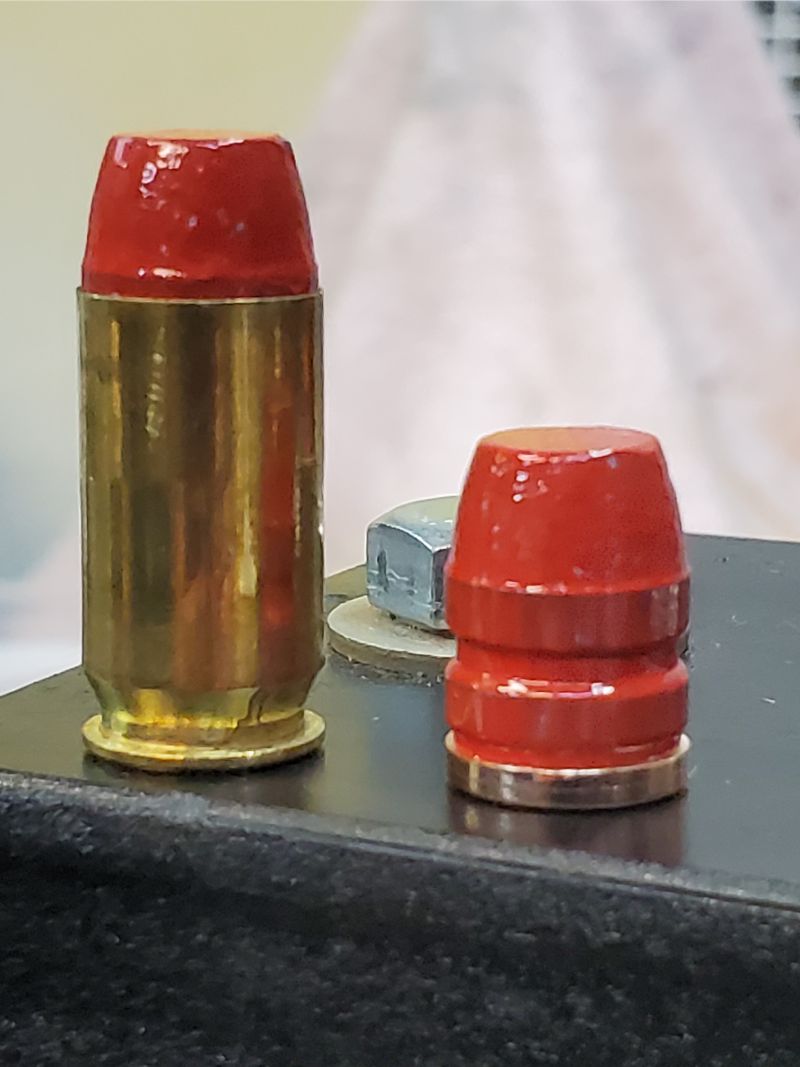

By the way, the 45-cal slugs are for my 45 Super 1911 project gun with the DIY comp, and I hope to try them this coming weekend. These are the WFN's ...




Will

Last edited:

Ian

Notorious member
Jim, I DO tap them on the container rim to shake the excess clumps and fuzzy spots off, what I meant was not trying to strain the bbs and powder off first, look how much powder got lost on the rifle bullets in the paper strainer containser vs the photo before straining. I pick them out of the bbs, tap, and place on their bases.

If Full30 goes functional for indepenents I'm going to start uploading videos again and would make one on this if they do. Ultimately, we all do things a little differently and that's perfecly fine as long as the process meets our individual needs. The things I recommend work for ME, but are certainly not the only way to do this.


Reloader762

Active Member
I don't tap my bullet either before placing them on the tray, I've pretty much figured out just how much powder for a given number of bullets so that I get nice coverage without it being excessive an looking clumpy, I can always add a little more powder if needed.

As far as powders I like I've tried quiet a few over the past couple years. Harbor Freight powders are off the list, the HF Red and Yellow were excellent when sprayed on but used too much powder and left rough edges on the bullets base that made seating gas check hard unless you deburred them using a NOE tool made for that purpose. Being the HF powders are Epoxy based it's a very hard coating.

I like Smokes powders some better than others, the Yellow/Green, Carolina Blue and Super Durable Clear are my favorites I get excellent coverage with those three powders. I like Eastwood powders as well Ford Light or Dark Blue, Lime or Medium Green, and one of my new favorite colors Metal Gray.
9378

Last edited:

Gary

SE Kansas
Always on the lookout for a decent rack to hold my cast upright when baking and I came across this find yesterday at Dollar Tree. Holes are large enough to easily stand any 30 cal possibly 40. Hope to try it after the monsoon today.


Attachments

  • bullet rack.jpg
    bullet rack.jpg
    559.7 KB · Views: 43

Pistolero

Well-Known Member
I am curious as to why the GC on the .45 bullets. What cartridge are they for.
I find no need for GCs in any pistol cartridges, but I suppose some guns and some
cartridges might need them.

Interesting info. So far, not going this route.

Bill


Reloader762

Active Member
I am curious as to why the GC on the .45 bullets. What cartridge are they for.
I find no need for GCs in any pistol cartridges, but I suppose some guns and some
cartridges might need them.

Interesting info. So far, not going this route.

Bill

Personally I don't run gas checks on 45 ACP but I do run them on my NOE 358156 HP clone when using soft alloy for expansion that want hold up to magnum handgun velocity and pressure. Other than those I pretty much save my gas checks for rifles.


Pistolero

Well-Known Member
I have run down to 8 BHN bullets in .44 Mag full power and .45 Colt (".45 Magnum" Ruger-only loads) and .357
Mag full power loads without leading in multiple guns. I often wonder if I am just lucky and don't have
guns with bores which tend to lead or perhaps have not used a wide enough range of bullet designs, or maybe
am lucky in lube choices. I have read that this is the reason 'soft alloy and max loads', and I can see that
it makes perfect sense as a solution. I just haven't (fortunately) run into the problem. I have been expecting
it - but so far my lucky rabbits foot or something is working.


Ian

Notorious member
I've run .44 Magnum 16:1 alloy at 95% with no leading and rifle accuracy, and .38 Super also near the top end with acww alloy and very good accuracy, but the 45 Super auto shoots much smaller groups with gas-checked bullets.


Pistolero

Well-Known Member
Interesting point. I have tried both of Thompson's .44 GC designs without discovering any
magic hiding there. But a long learned lesson is 'every gun is a thing unto itself'.

And another one which many folks seriously overlook. Just because YOU can't do it, doesn't
mean NOBODY can do it.


Big time.

Bill


Pistolero

Well-Known Member
After paying attention for a long time, sometimes you learn a thing or two.
I have watched people do some amazing things.

Bill


Ian

Notorious member
